While playing around with the raspberry pi, i found Arduino, so i desided to try it out and purchased a clone on ebay.com
I desided to go with the small and cheap Arduino Pro mini
After testing some setups, i found atleast 4 versions. - Please notice the one i prefere.
Here is a list you can use as a starter kit
it is very common parts, you can reuse in most setups.
but this depents on what you what to make. My recoments is to play around with some use full things like LED, tempsensors (DS18B20) and DHT22, Display (LCD1602), later on shift register (74hc595)
The only problem was i had not read that you needed a USB/FTDI programmer, so I needed to modify my USB to Serial interface
List of most common versions.

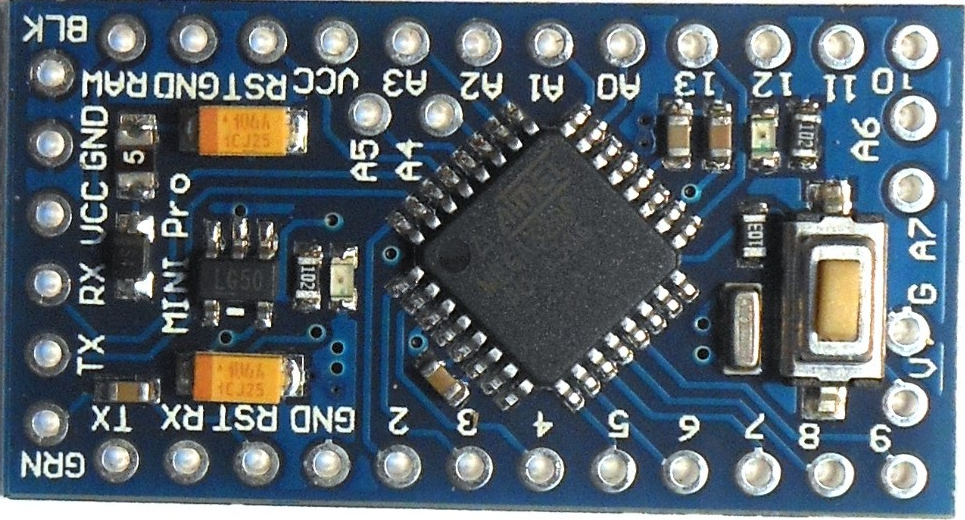

Clone - Notice Extra GND and A6 + A7 are moved !

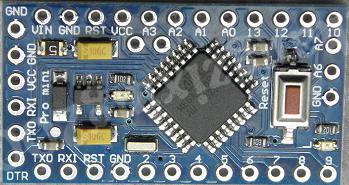

Clone - Notice Extra GND + VCC and A6 + A7 are moved !!

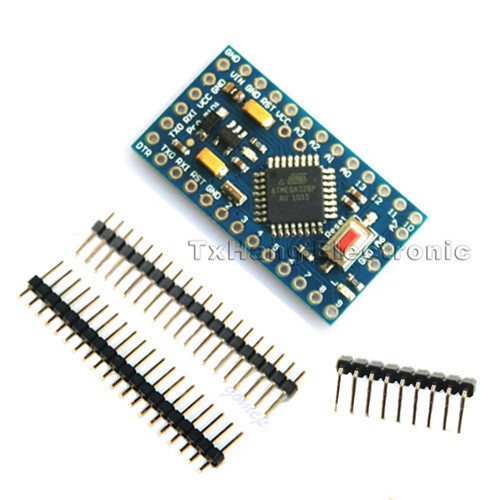

Clone (NANO like)- Notice Extra GND and A6 + A7 are moved !
I like this board, and it is only 3.75 including shipping to Denmark
