Arduino USB/FTDI programmer from a USB to serial converterThis guide shows how to modify a USB to serial converter, to a Arduino USB/FTDI programmer Otherwise you have to manuel reset the adrino when software is uploading.

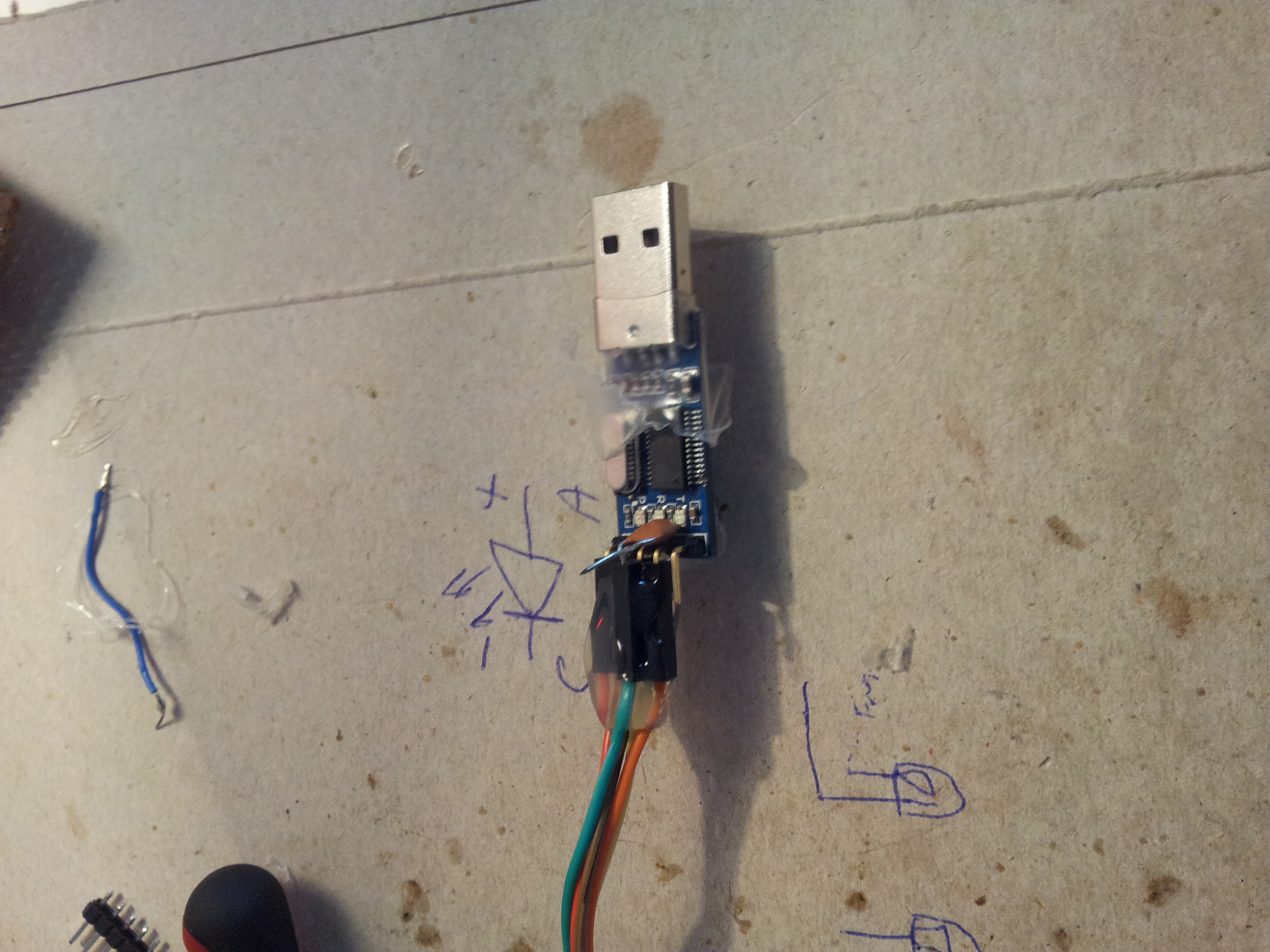

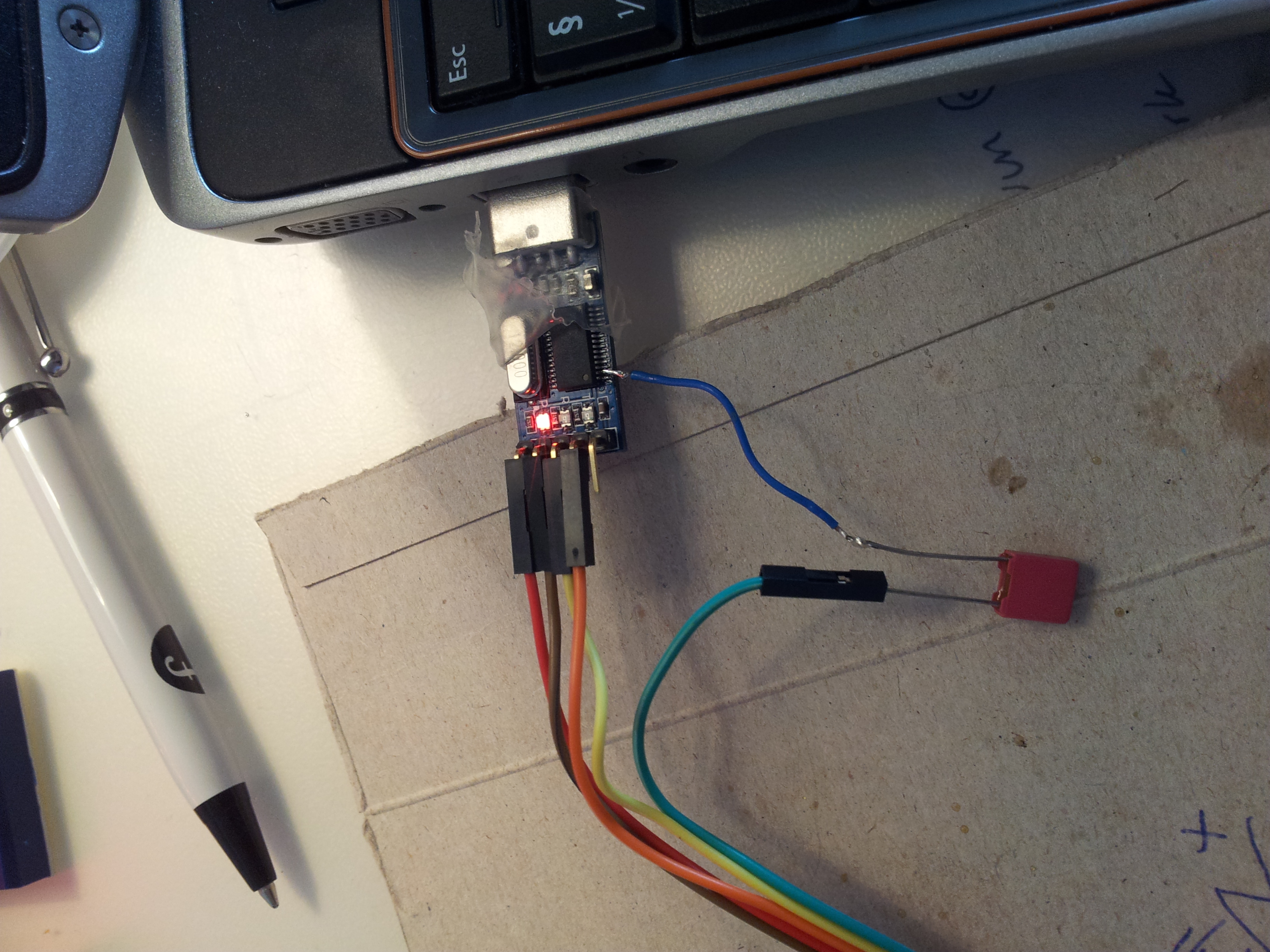

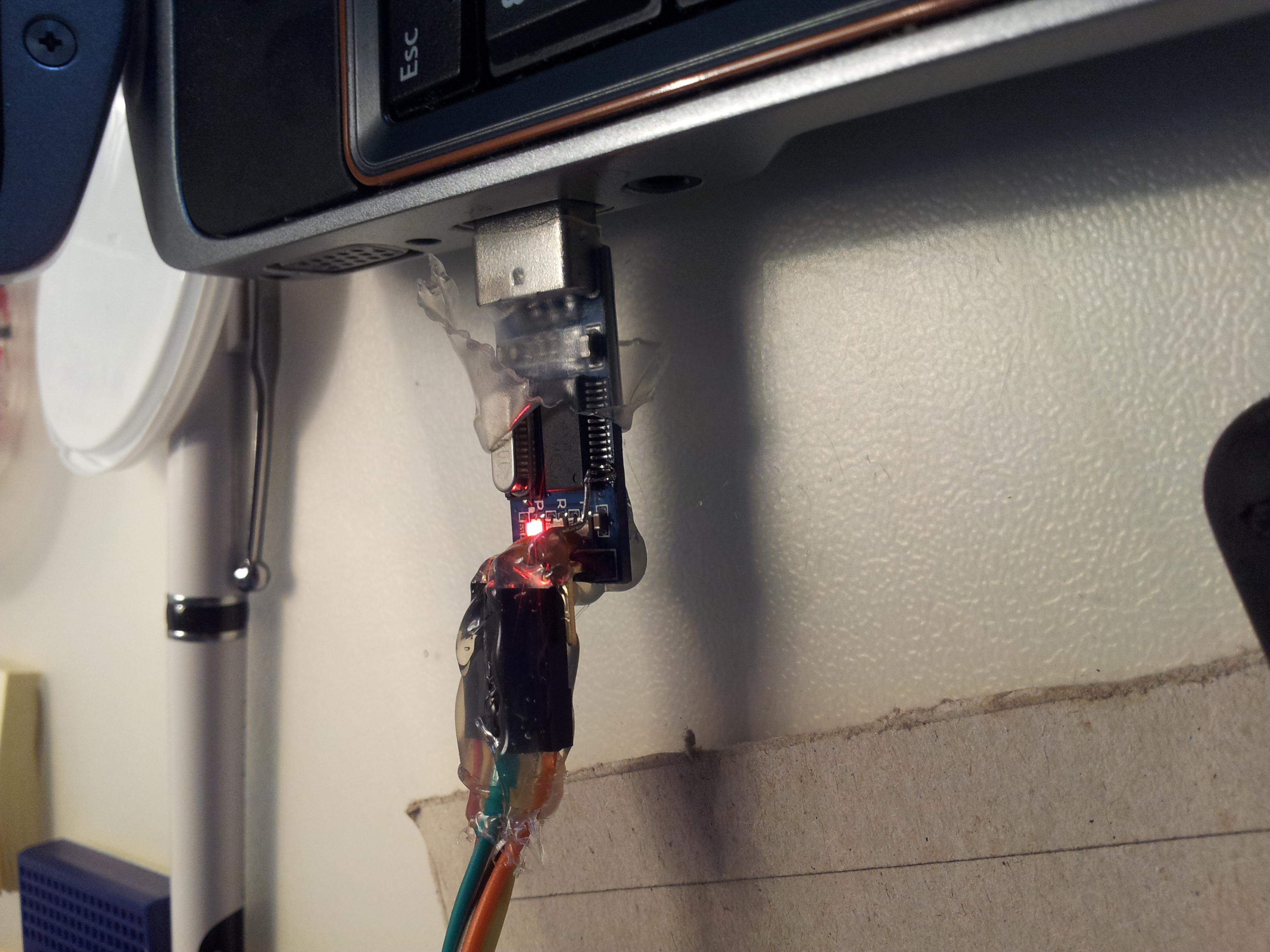

Use donate button if you like my guides, or if you want a new guide ( See missing work ). Here is the guide I used. Connect a Capacitor 0.1 uF to pin2  Test it working Then hot glue the pins together  Test it working again Then hot glue it together  Final result  |
