Electronics Info How to build 8X8 LED matrix How to build 8 LED test shield

Electronics 8 PCS of 8 Bit led testers


This guide shows how to create an 8 Bit led test used for different tests

PCS Item Calculated Price Price bulk buy
1 PCB 5X7 CM 1.28 E-bay US $ 1,28 with shipping to Denmark (Aug 2013)
100 270Ω Resistor 1.99 E-bay US $ 1.99 with shipping to Denmark (Aug 2013)
100 Red SMD led 1.29 E-bay US $ 1.29 with shipping to Denmark (Aug 2013)
4 Male Tin Square 1.34 E-bay US $ 6.67 with shipping to Denmark (Aug 2013)
* Remember to search on 5, 10, 20, 50, 100, 500, 1000PCS, Prices for 50 pcs can be near equal to 100 pcs !!!



Use donate button if you like my guides, or if you want a new guide ( See missing work ).

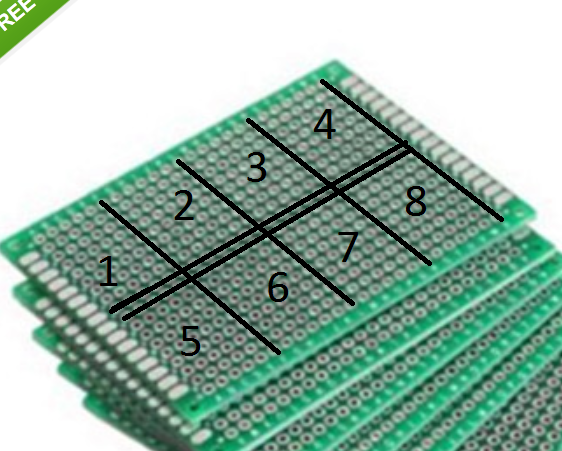

Start with cutting up the pcb - I made this sample on single sided. But duble sided is stronger
I use 5 X 8 holes - It seem to fit all my
with small border - (if 2 boards shood be next to each other (16 bit)
Solderless Bread Board
some text

Cut the male tin square 8 + 1
some text

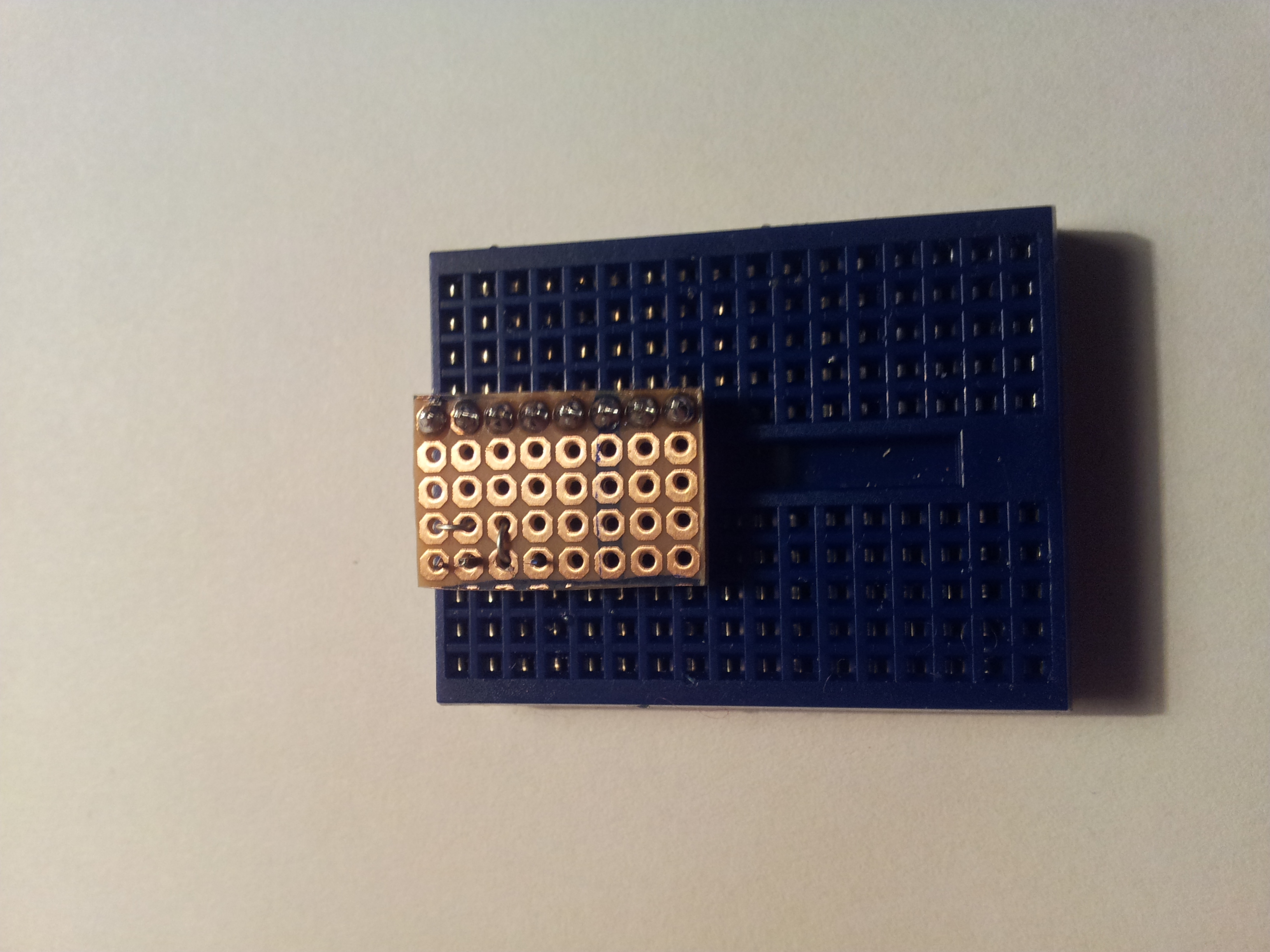

Then solder in the male tin square - You can use a Solderless bread bord, as support
some text

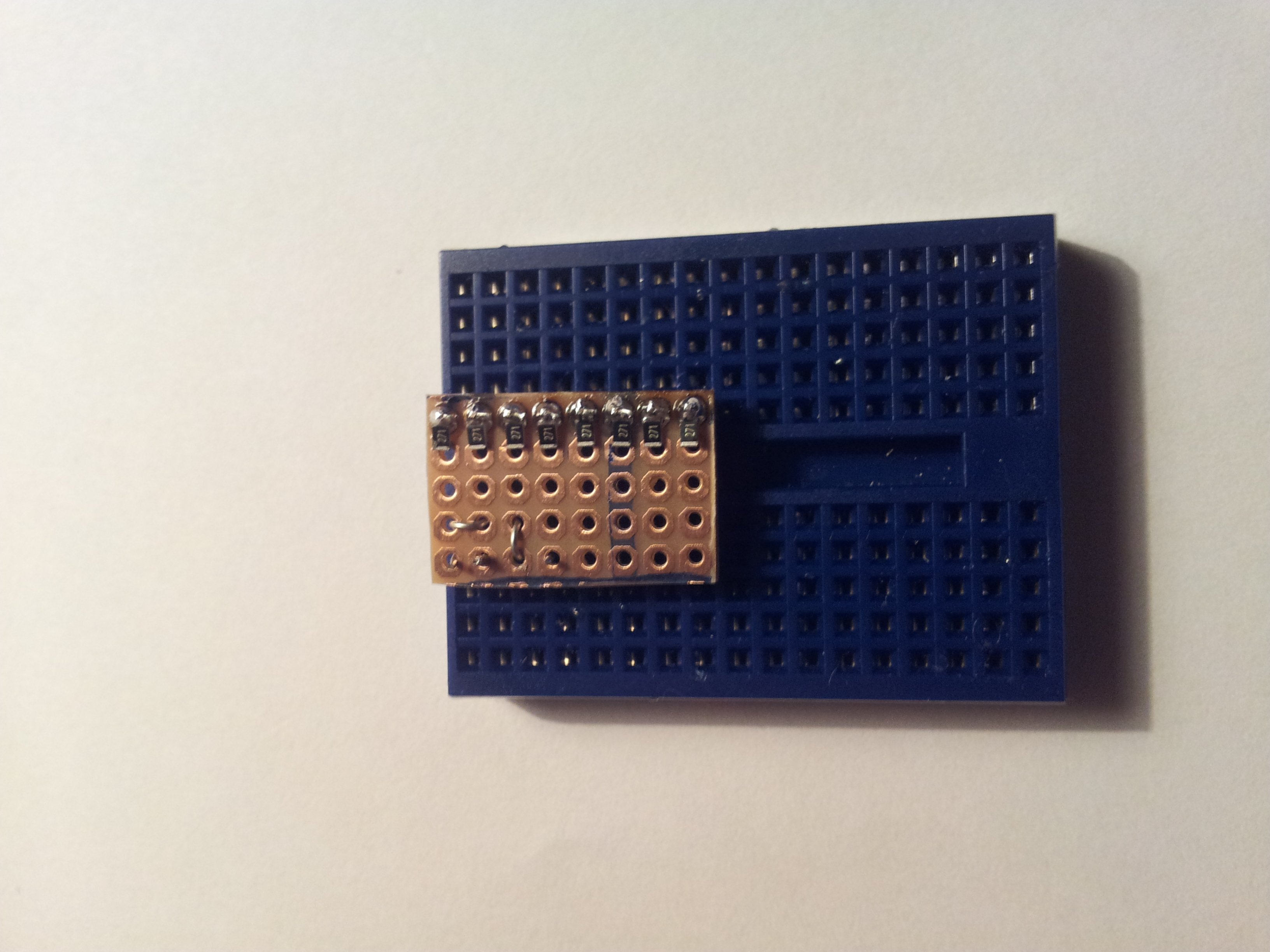

Then solder in all the resistors.
some text

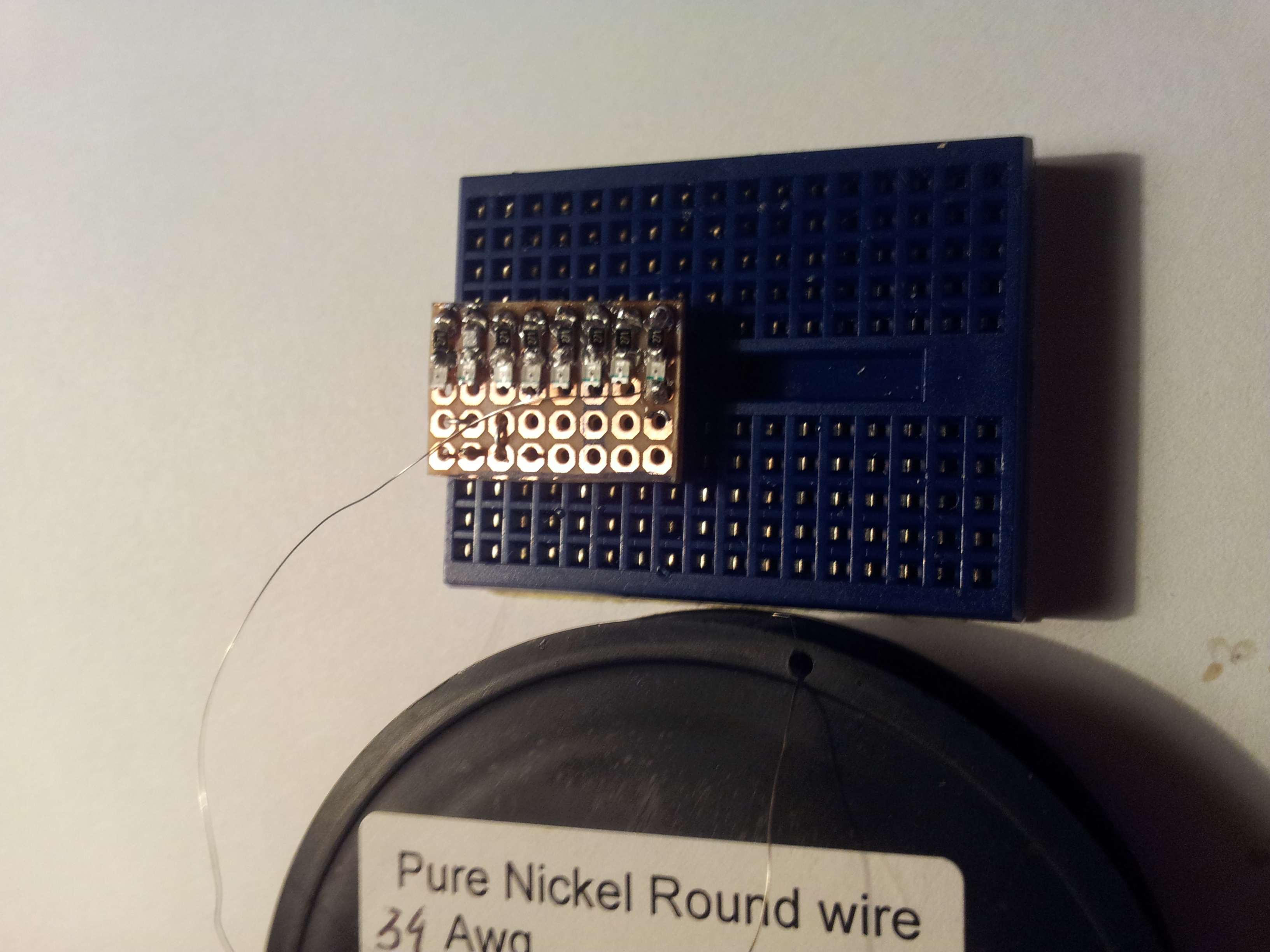

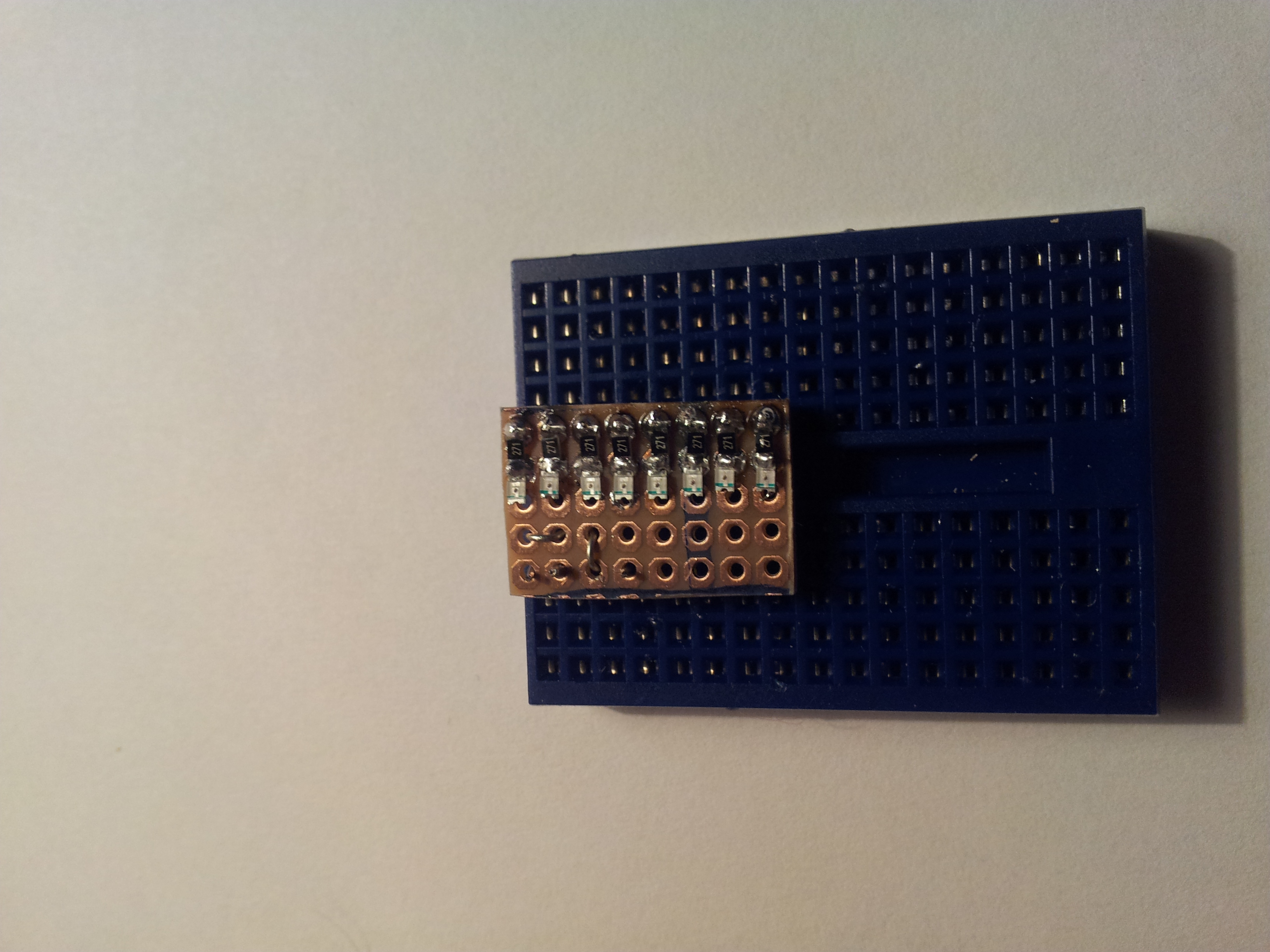

Then solder in all the led´s
some text

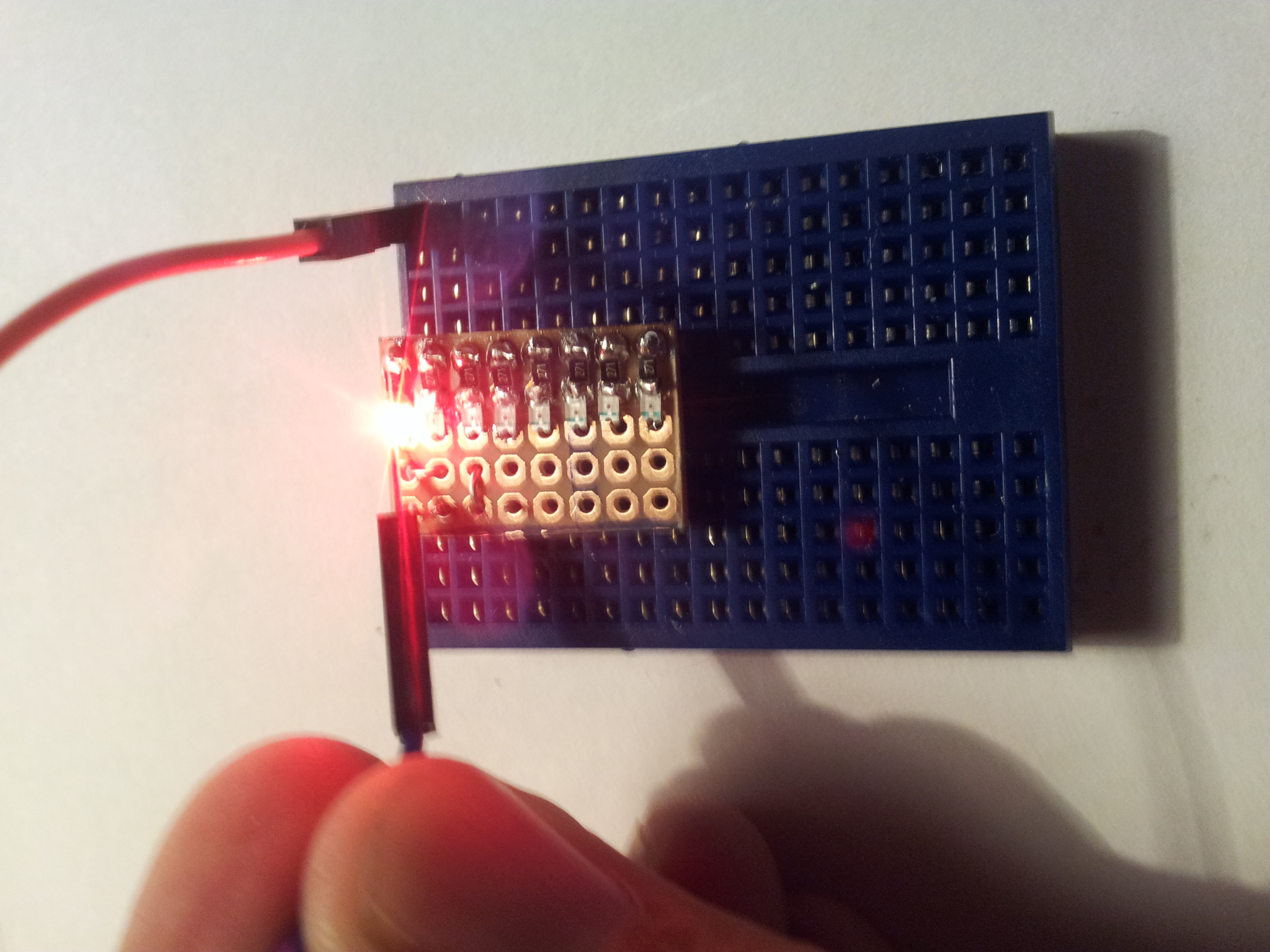

Then test all led´s
some text

Then solder the GND connection.
some text

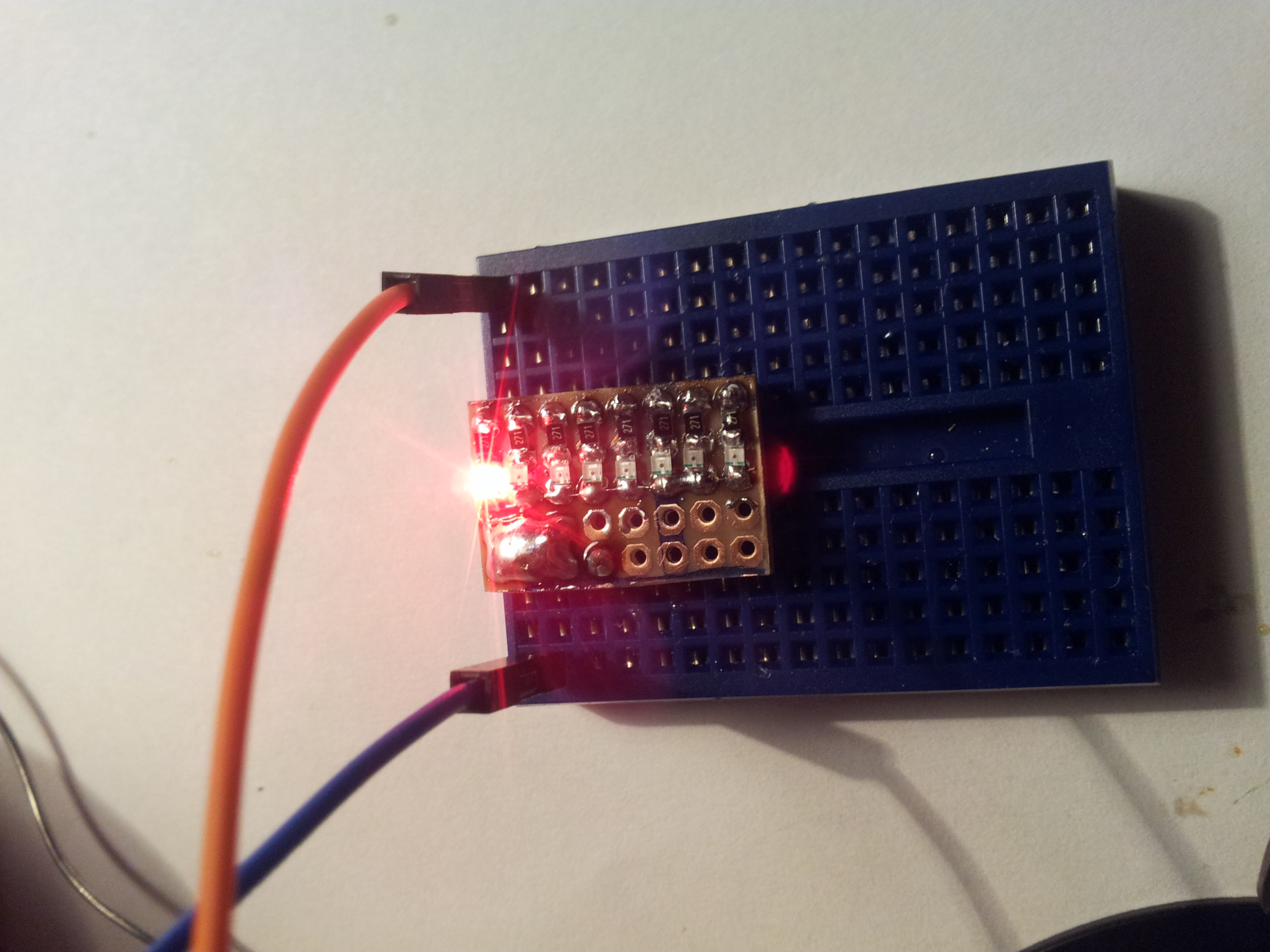

Then test all led´s
some text

Now the board is ready to bee used in test setups.

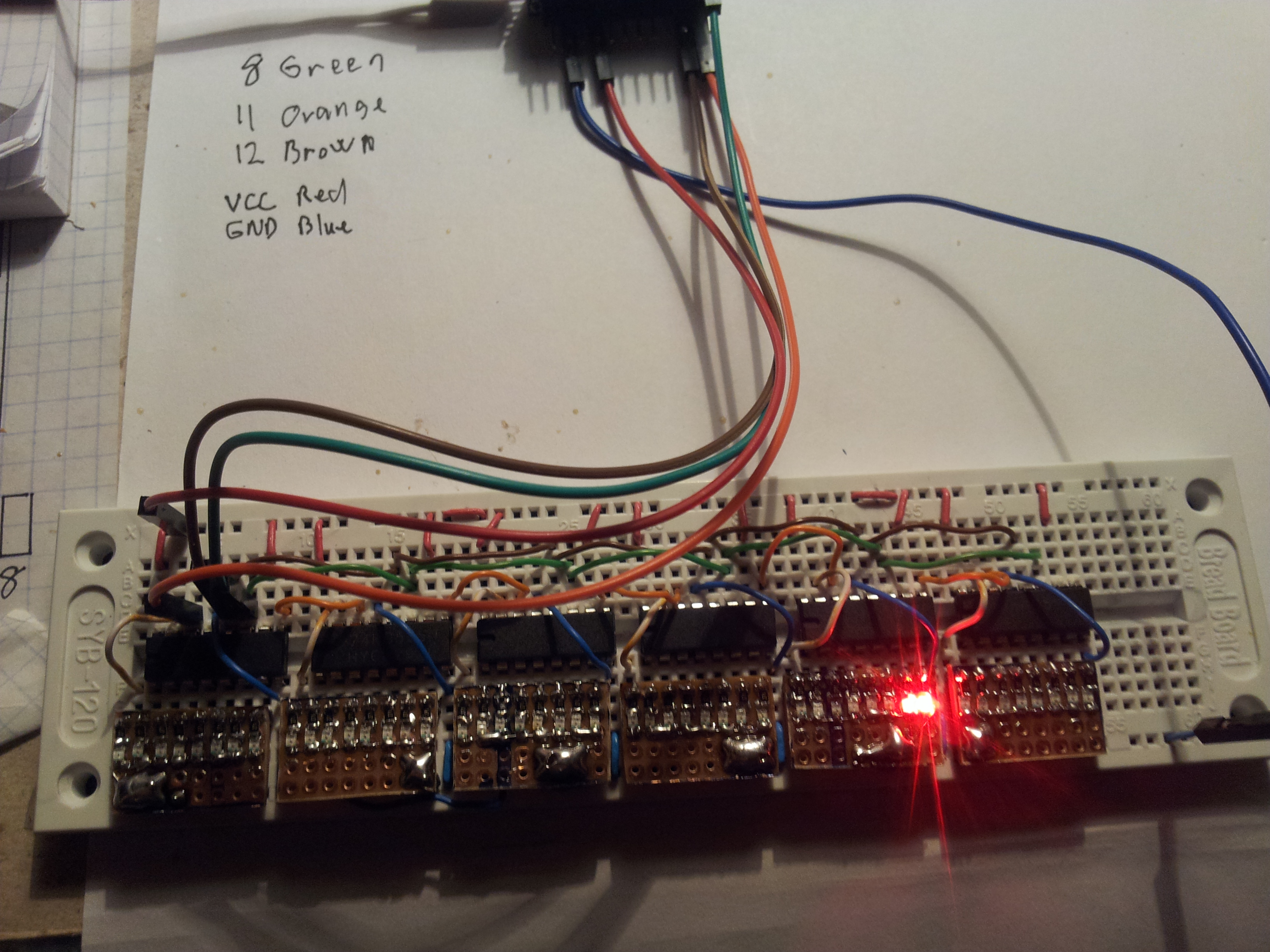

Here a test setup with 6 pcs 8 bit shiftregisters (74HC595) and an Arduino Pro Mini clone.
some text
